High quality Slewing bearing HYB5055

Material : Chrome Steel

Model Number : HYB5055

Model : HYB5055

Payment Terms : T/T,Western Union,D/P,D/A,L/C

Delivery Time : Stock

Packaging Details : Packaging Detail: 1.industrial packaging: plastic bag+kcraft paper+carton+plywood pallets; plastic tube+carton+plywood pallets 2.commerical packaging: 1pc/plastic bag+color box+carton+plywood pallets 3.as client's requirementPlace of Origin:

Service : OEM Customized Services

Place of Origin : CHINA

Payment : T/T,Western Union,Paypal, USD,AUD,CAD,SGD,EUR,GBP,HKD,JPY

MOQ : 10PCS

Supply Ability : 50000PCS

Product name : Slewing bearing

Brand Name : WRM

Contact Now

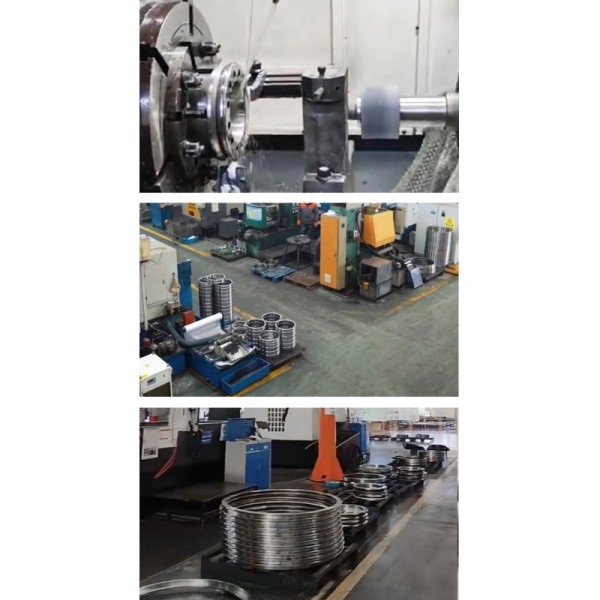

Our factory professional manufacturer of precision bearings. We have over 60 automated and intelligent production lines to ensure stable and large-scale supply. At the same time, we also offer customized non-standard bearings and one-stop services for special working conditions. The company has independent import and export rights, and its product quality is reliable with stable overall performance. Over the years, our products have won the trust of a wide range of customers and have been sold globally to countries and regions such as the United States, the United Kingdom, Germany, France, Italy, Russia, Poland, Spain, Portugal, South Korea, Indonesia, Malaysia, Thailand, Vietnam, Myanmar, Turkey, etc.

Our slewing bearings adopt precision steel materials and circulating rolling elements to achieve remarkable load capacity, capable of bearing radial, axial and overturning moment simultaneously. Optimized raceway structure ensures steady rotation, low friction and minimal abrasion, with excellent heat dissipation and prolonged service life. Multiple structural types and sealing options support flexible assembly and simple maintenance to reduce operational costs.
Suitable for continuous rotation and harsh outdoor or dusty working environments. Widely applied in construction machinery, aerial work platforms, port machinery, solar tracking equipment, wind power accessories, robotic arms, mining equipment, cranes and automated turntables, providing reliable rotary support for light, medium and heavy-duty rotary equipment.

Product Name	Slewing bearing HYB5055
Material	Chrome Steel (GCr15);50Mn‌；42CrMo‌
Packaging Detail	1.Industrial packaging: carton+plywood pallets; 2.Commerical packaging: 1pc/plastic bag+color box+carton+plywood pallets 3.As client's requirement

High quality Slewing bearing HYB5055

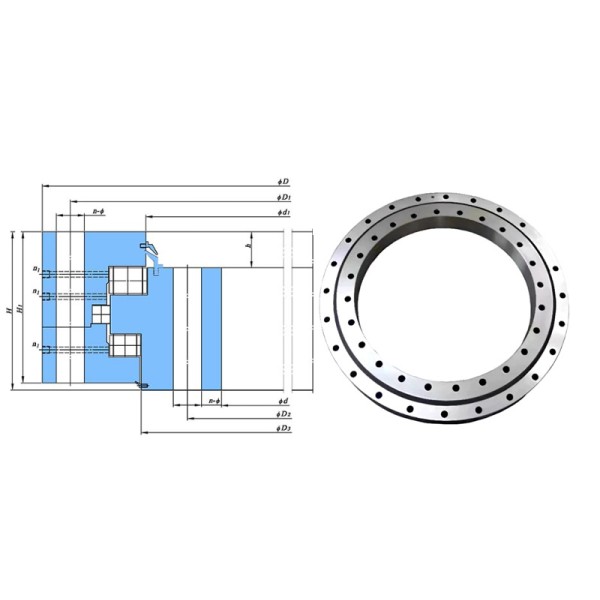

Model	Principal Dimension (mm)			Mounting hole size(mm)				Structural dimension(mm)						Gear parameter(mm)				weight (kg)
Model	D	d	H	D1	D2	n	∅	D3	d1	H1	h	n1	M	m	Z	b	X	weight (kg)
HJW3580	4100	3970	240	3820	3350	54/52	37	3578	3582	220	20	16	33	25	162	200	0	7587
HJW3500	3840		174	3640	3360	72	33	3498	3502	160	14	12	30	24	158	160	0	3400
HJW2800	3076	2978	112	2910	2691	56	33	2798	2802	100	12	8	30	20	151	90	0.5	1470
HJW2500	2776	2678	112	2610	2391	56	33	2497	2502	100	12	8	30	20	136	90	0.5	1185
HJW2240	2498.4	2418	112	2350	2131	48	33	2237	2243	100	12	8	30	18	136	90	0.5	1000
HJW2000	2268.8	2178	112	2110	1891	48	33	1998	2002	100	12	8	30	16	139	90	0.5	922
HJW1980	2264.4	2178	220	2110	1851	48	33	1977	1983	210	20	8	30	18	125	123	-0.5	2040
HJW1745	1979.91	1880	140	1840	1650	48	22	1743	1747	105	10	8	20	10	196	99	0	827
HJW1660	1960.8		200	1780	1486	18	33	1657	1663	160	10	6	30	16	120	190	0.30962	1670
HJW1262	1477	1400	140	1352	1160	26	22	1260	1264	126	21	4	20	14	104	90	-0.24	607
HJW1120	1272	1242	82	1198	1042	16	20	1118	1122	66	16	4	20	6	210	65	0	249
HJW1025	1180	1150	115	1115	935	16	18	1021	1029	100	15	4	16	5	234	80	0	333
HJW980	1216		133	1080	850	24	33	976	984	115	8		30	16	74	125	0	572
HJW900-CS	1056	1022	82	978	822	30	22	898	902	72	10	6	20	3	350	40	0	188
HJW900	1062.4	1022	82	978	822	30	22	898	902	72	10	6	20	8	130	65	0.5	189
HJW845	976	853	93	907	784	16	18	843	847	77	23	4	16	8	120	70	0	170
HJW823	979	853	100	893	753	28	22	821	825	84	21	4	20	10	94	63	1.1	193
HJW710	852	812	74	776	644	24	13.5	708	712	36.5	10	4	10	6	140	54	0	125
HJW309	408.4		60	359	259	24	13	308	310	52.5	7.5	4	10	5	80	52.5	0	30.4

High quality Slewing bearing HYB5055

FAQ

Q1:Why choose us ?

A1:Our company have over 20 years of experience in manufacturing and selling bearings
Strict Inspection ,and the best quality price with reasonable price bearings provided .
OEM service provided.
After sale service at any time .

Q2:What brand you could provided ?

A2:Our brand is WRM, we also offer OEM service .

Q3:MOQ?

A3:MOQ is 10pcs each model.

Q4:Customlzed Logo?

A4:We can provide OEM service,print your logo on the bearing and packing box.

Q5:Payment?

A5:We accept T/T (Bank Wire),Western Union,Paypal,L/C.Buyer can pay in USD

AUD,CAD,SGD,EUR,GBP,HKD,JPY and cash.

Q6:Your product certifications ?

A5:ISO 9001:2008 , ISO 9001:2000
